Connecting to a MiVoice Business using Telnet

To use Mitel Performance Analytics Remote Access to connect to a MiVoice Business call server with the Telnet protocol, do the following steps:

1.  Access the dashboard for the device you want to connect to.

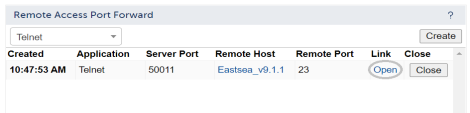

2.  From the Remote Access Port Forwards panel, select Telnet from the protocol dropdown list or supply a non-default port number. If you choose Telnet, the remote access session uses default port 23.

3.  Click on the Create button to create a port. The Remote Access Port Forwards panel updates. The various table columns are populated.

4.  Click on the Open link to open a Telnet client session to the MiVoice Business.

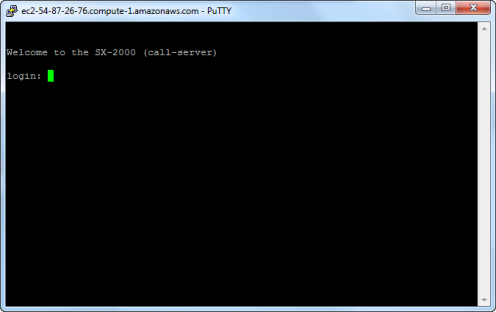

The Telnet session starts.

5.  Enter your credentials to Telnet into the MiVoice Business.

Tip: You can use these instructions to connect to the MiVoice Business port 2002 to manage it.
