Alarm Panel and Tabs

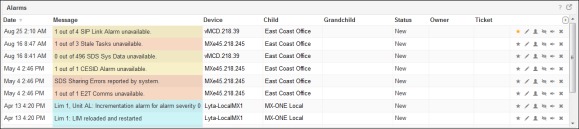

Every device or container dashboard contains an Alarm panel. The following is an example of an Alarms panel for a container dashboard.
Notes:
The Alarms panel for a device dashboard presents only a subset of available functions.
Closed alarms are displayed for only the last 30-days. For information on older alarms, use the Alarm Export query. See "Alarm Queries".
The alarm list is updated every 5 minutes or when specific traps are received from certain devices; such as a MiVoice MX-ONE, a MiVoice Business, or a router. The device sends an Alarm Notification trap when an alarm condition is detected or cleared by the device. If a new alarm arrives, the alarm list automatically shows the most recent alarms. Bold alarms are those generated for the current day.
For information on the different types of alarms displayed in the Alarms panel, see the following topics:
"Mitel Performance Analytics System Alarms"
Note: Indeterminate alarms are mainly related to device setup and configuration. During initial setup and configuration of Mitel Performance Analytics, many indeterminate alarms will be raised. To view only indeterminate alarms, deselect the other alarm types in the Alarm filter bar located above the Alarms panel. To hide them, click the Indeterminate Alarms filter button.
Click the
icon in the top right corner of the Alarms panel to expand it and see its tabs.
Expanding the Alarms panel displays tabs with specialized information:

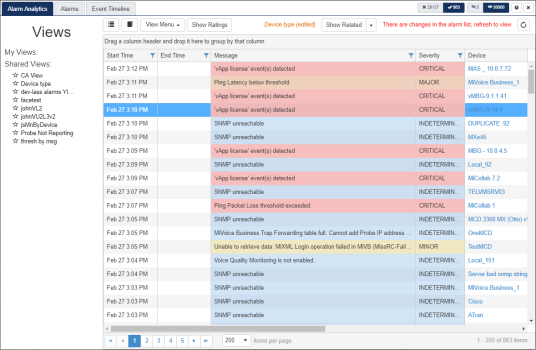

The Alarm Analytics tab shows user-customized alarm information, as follows:
For details, see "Alarm Analytics" and "Alarm Analytics Operations".

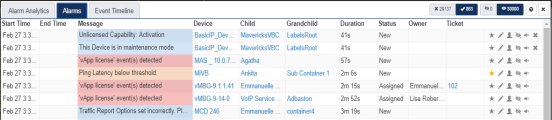

The Alarms tab shows an expanded view of the alarm panel with further detail on current and historical alarms as follows:
For details, see: "Alarm Management Operations".

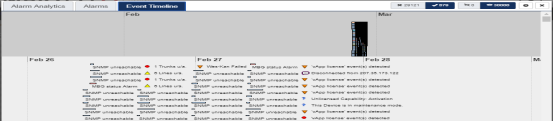

The Event Timeline tab shows alarms on a graphic timeline, as follows:
